FORTRESS

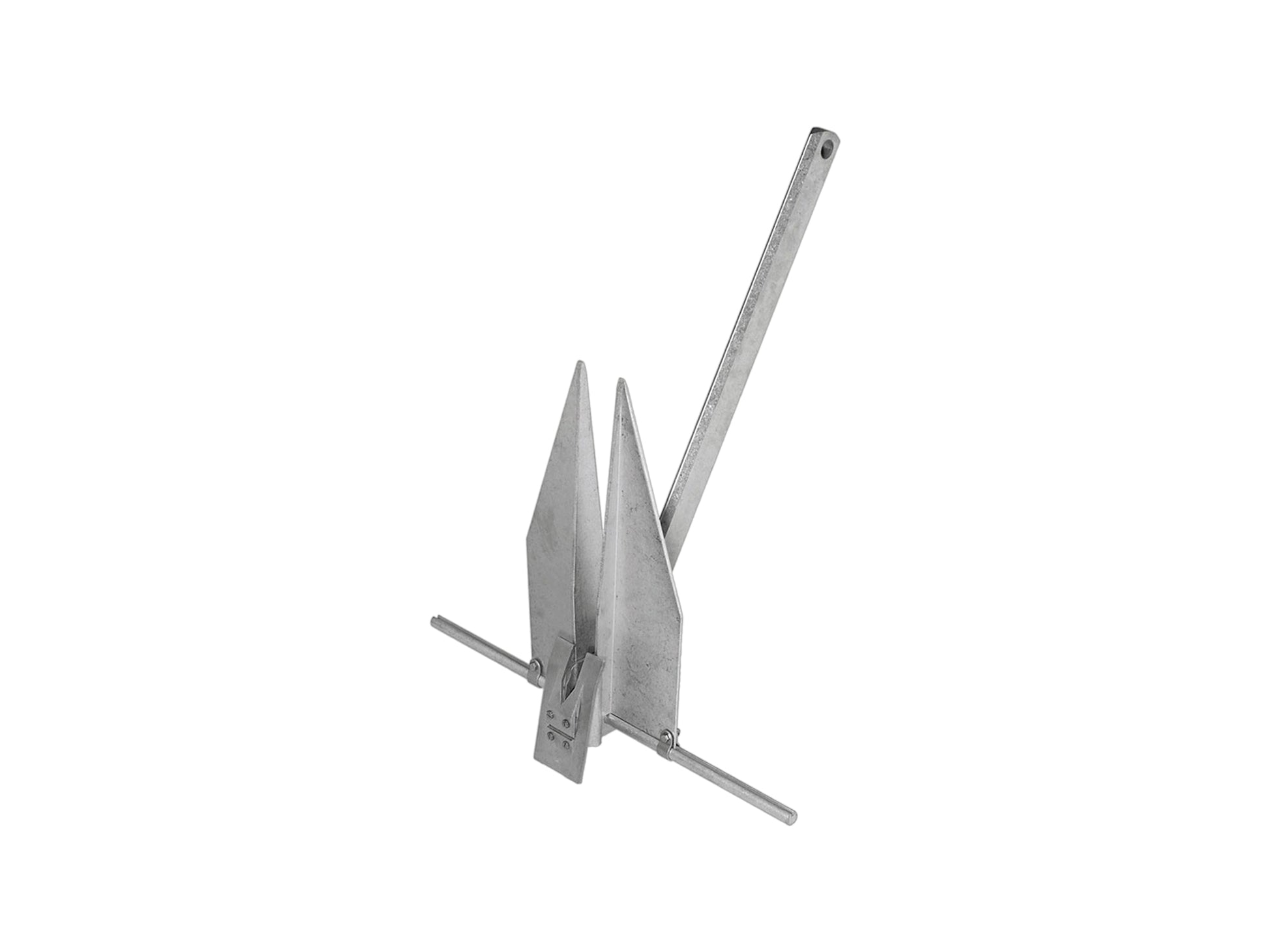

Guardian G-7 Anchor, 17-22FT / 5-7M
Guardian G-7 Anchor, 17-22FT / 5-7M
Regular price
$67.08 CAD
Regular price
Sale price
$67.08 CAD
Unit price
/
per
Couldn't load pickup availability

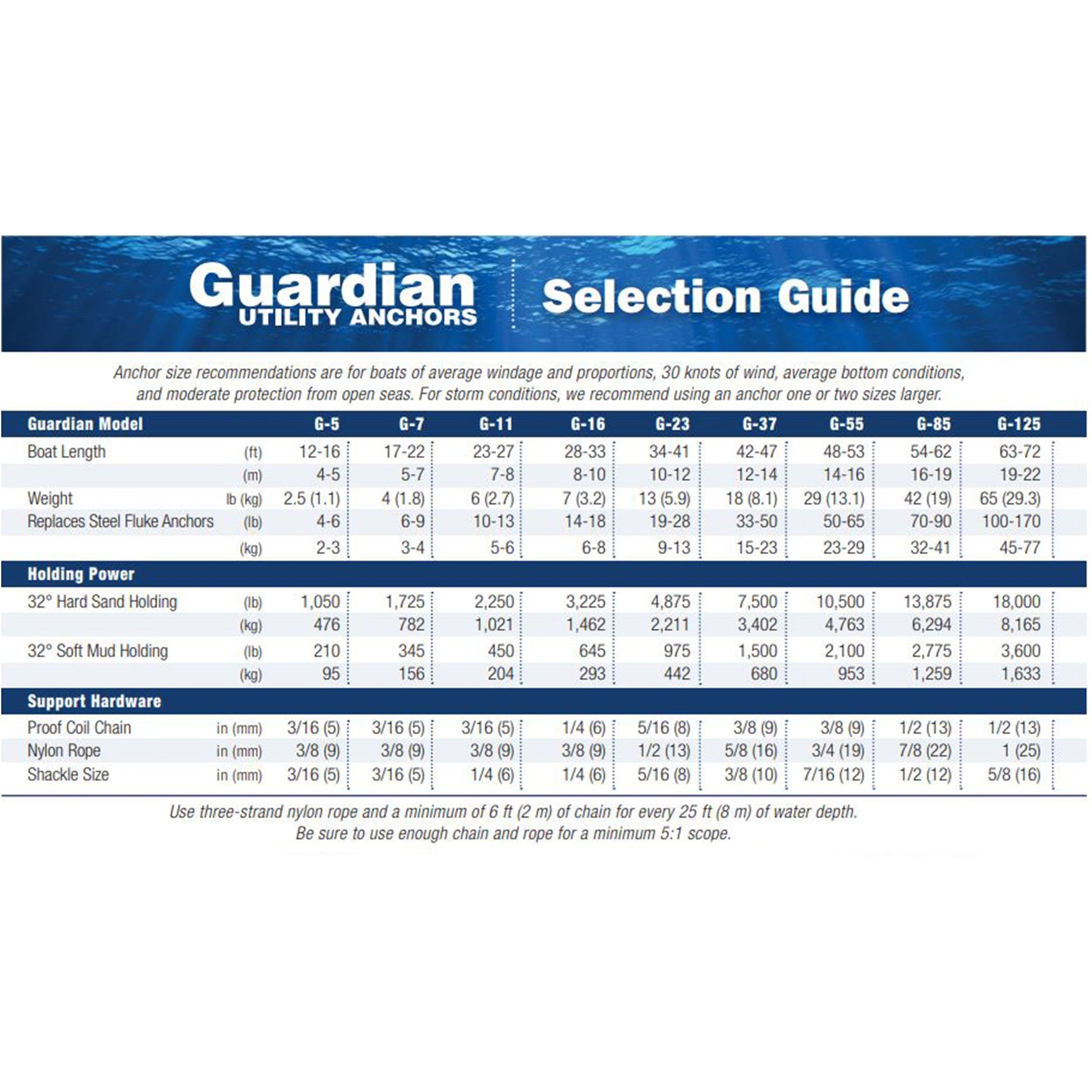

Anchor size recommendations are for boats of average windage and proportions in 30 knots of wind, average bottom conditions, and moderate protection from open seas. Remember that the loads in 42 knots of wind are twice as much as in 30 knots.
Use three-strand nylon rope, 6-12 ft (2-4 m) of chain and a minimum of 5:1 scope. Also, a minimum of 6 ft (2 m) of chain should be used for every 25 ft (8 m) of water depth. For storm conditions use an anchor one or two sizes larger.

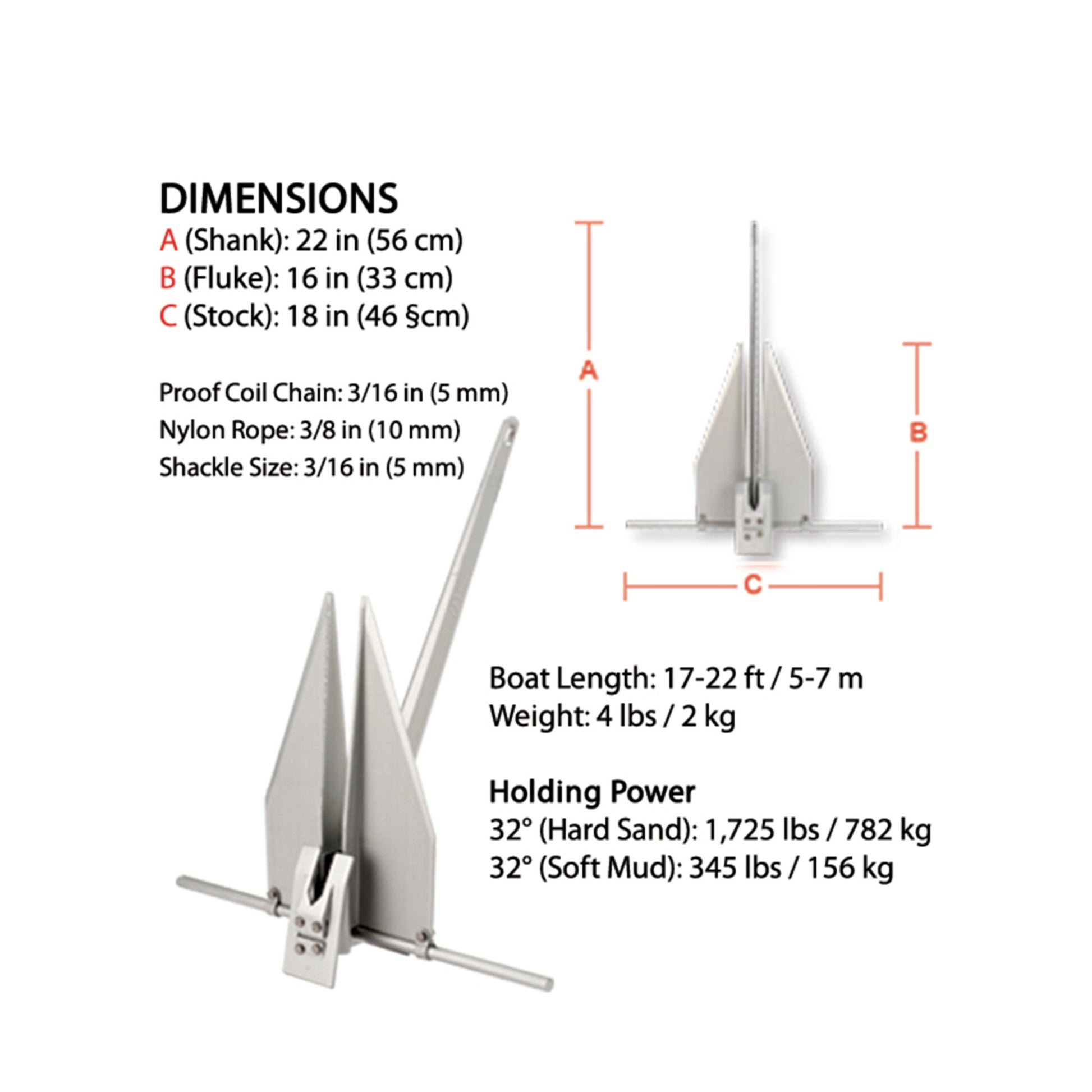

SPECIFICATIONS:
Shank: 22 in (56 cm)
Fluke: 13 in (33 cm)
Stock: 18 in (46 cm)
Proof Coil Chain: 3/16 in (5 mm)
Nylon Rope: 3/8 in (10 mm)
Shackle Size: 3/16 in (5 mm)
Boat Length: 17-22 ft / 5-7 m
Weight: 4 lbs / 2 kg
HOLDING POWER
32° (Hard Sand): 1,725 lbs / 782 kg
32° (Soft Mud): 345 lbs / 156 kg
PRODUCT NUMBER: FO-2765
Use three-strand nylon rope, 6-12 ft (2-4 m) of chain and a minimum of 5:1 scope. Also, a minimum of 6 ft (2 m) of chain should be used for every 25 ft (8 m) of water depth. For storm conditions use an anchor one or two sizes larger.
SPECIFICATIONS:
Shank: 22 in (56 cm)
Fluke: 13 in (33 cm)
Stock: 18 in (46 cm)
Proof Coil Chain: 3/16 in (5 mm)
Nylon Rope: 3/8 in (10 mm)
Shackle Size: 3/16 in (5 mm)
Boat Length: 17-22 ft / 5-7 m
Weight: 4 lbs / 2 kg
HOLDING POWER
32° (Hard Sand): 1,725 lbs / 782 kg
32° (Soft Mud): 345 lbs / 156 kg
PRODUCT NUMBER: FO-2765
