FORTRESS

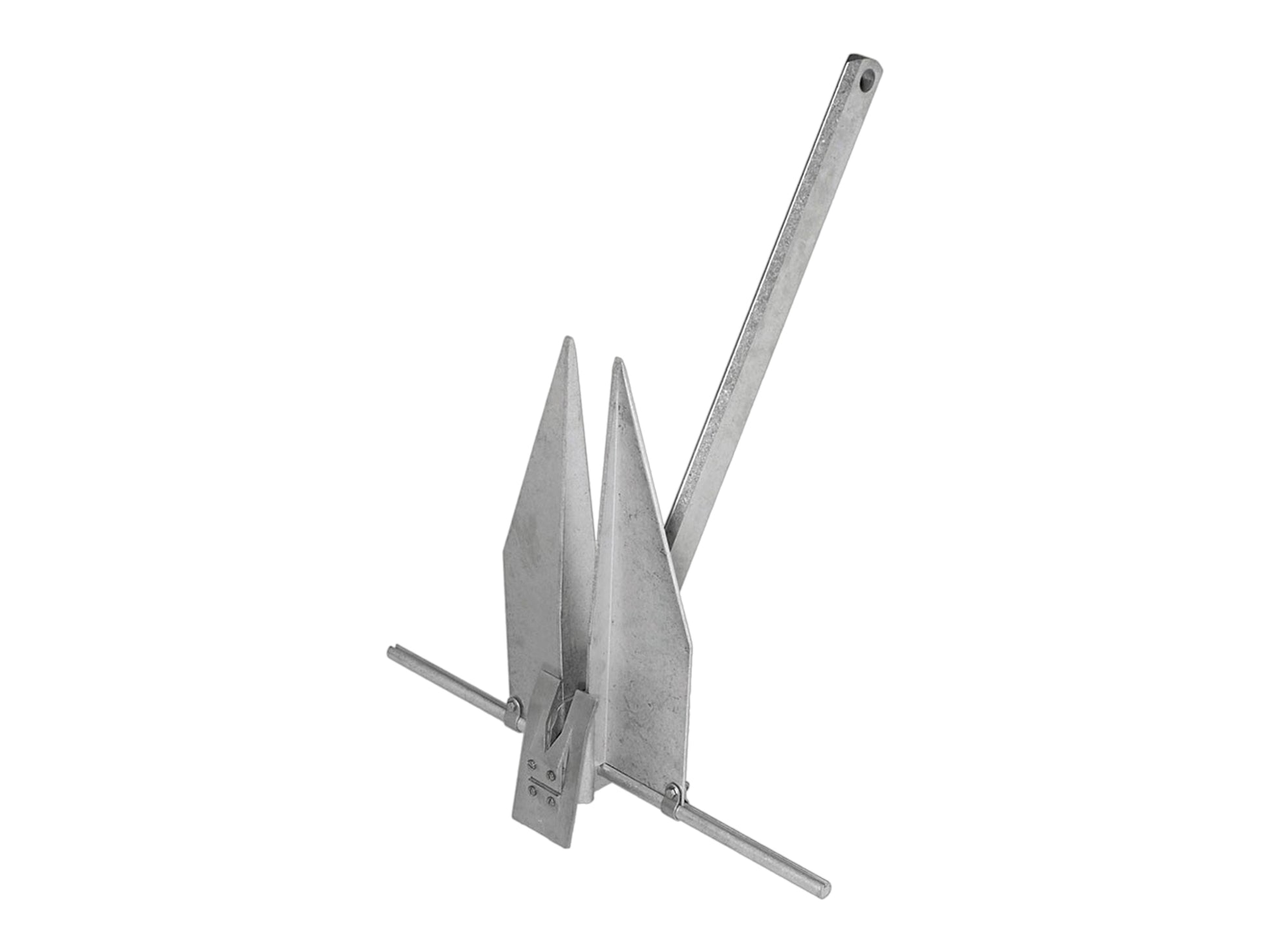

Guardian Anchor G-16, 28-33FT / 8-10M
Guardian Anchor G-16, 28-33FT / 8-10M
Regular price
$119.32 CAD
Regular price
Sale price
$119.32 CAD
Unit price
/
per
Couldn't load pickup availability

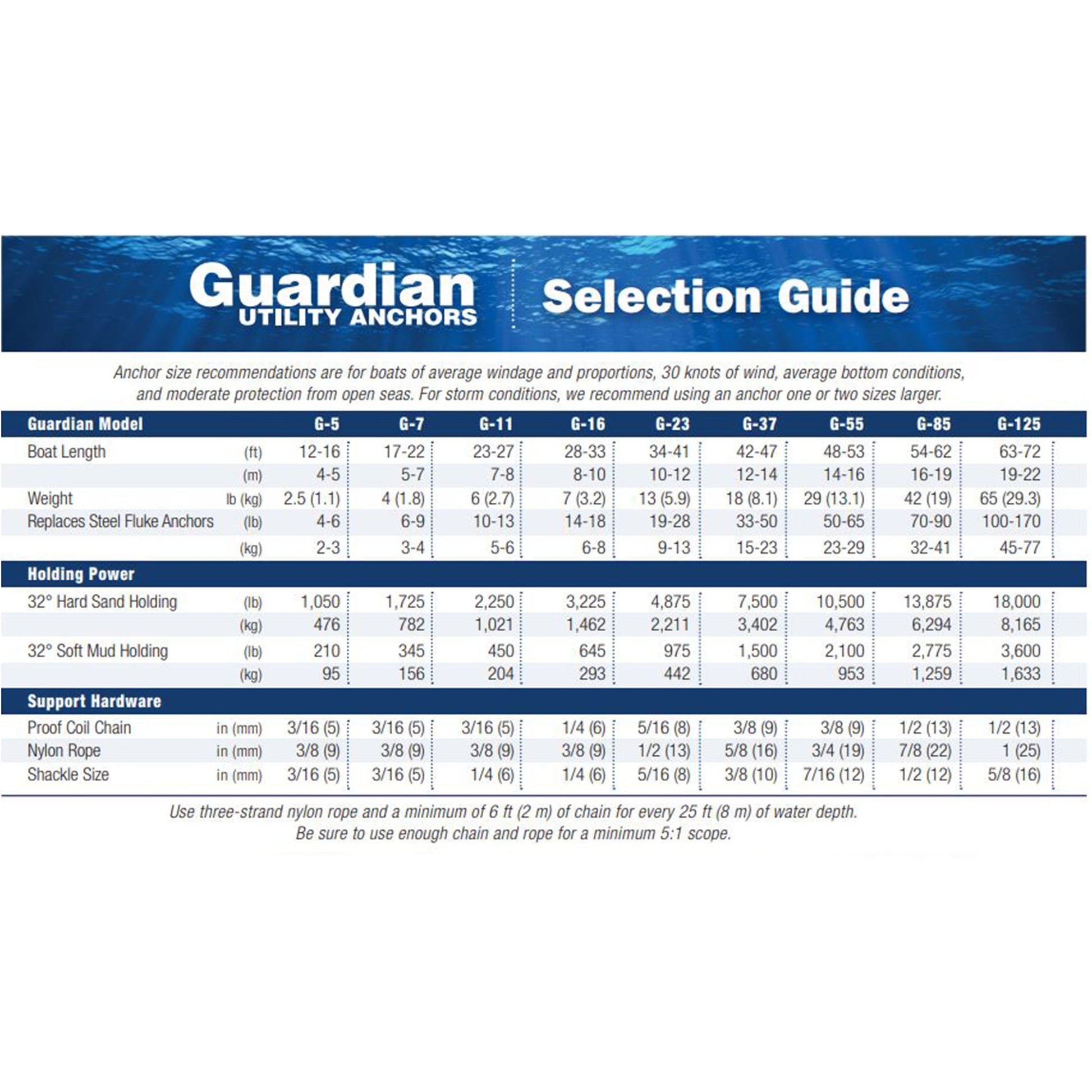

Anchor size recommendations are for boats of average windage and proportions in 30 knots of wind, average bottom conditions, and moderate protection from open seas. Remember that the loads in 42 knots of wind are twice as much as in 30 knots.
Use three-strand nylon rope, 6-12 ft (2-4 m) of chain and a minimum of 5:1 scope. Also, a minimum of 6 ft (2 m) of chain should be used for every 25 ft (8 m) of water depth. For storm conditions use an anchor one or two sizes larger.

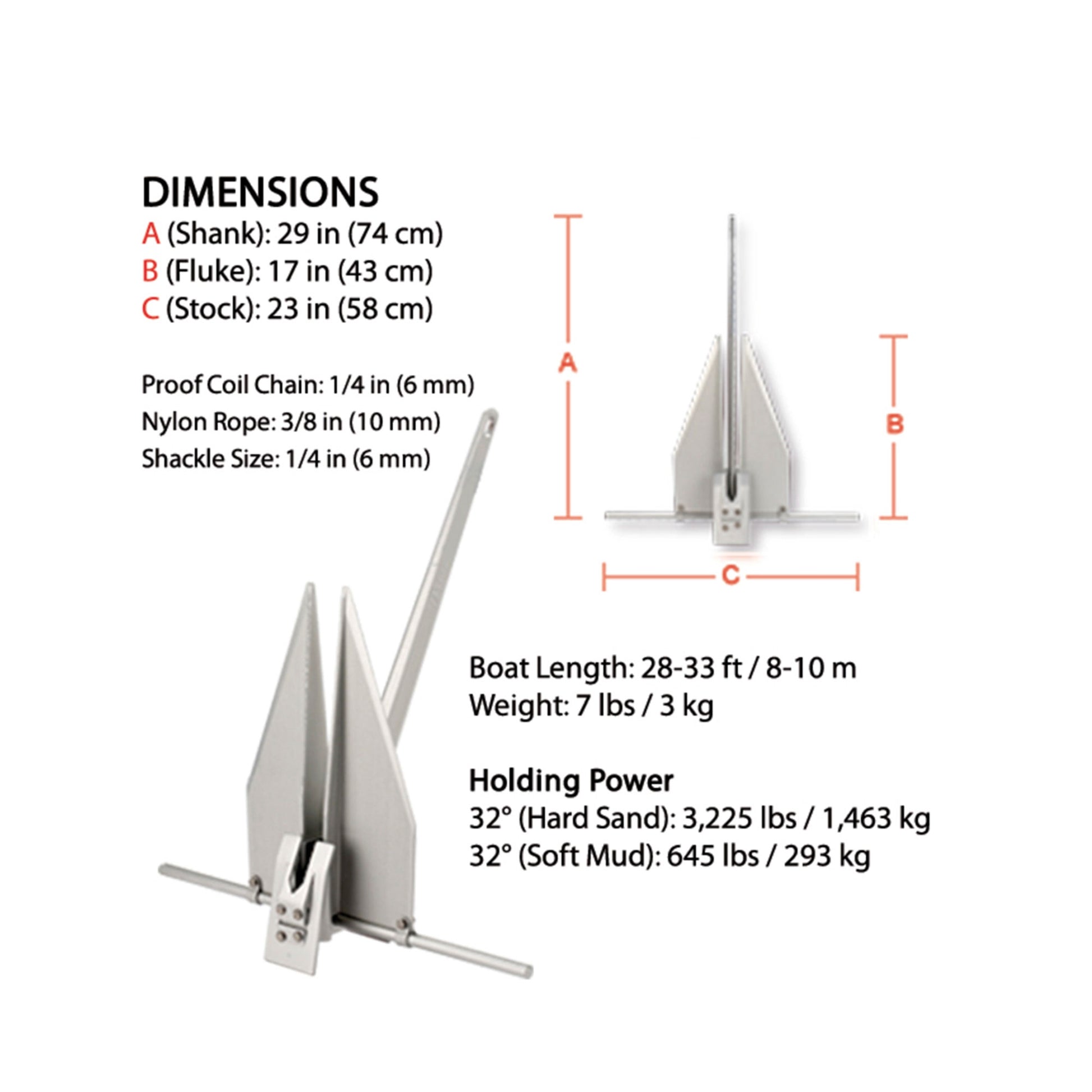

SPECIFICATIONS:
Shank: 29 in (74 cm)
Fluke: 17 in (43 cm)
Stock: 23 in (58 cm)
Proof Coil Chain: 1/4 in (6 mm)
Nylon Rope: 3/8 in (10 mm)
Shackle Size: 1/4 in (6 mm)
Boat Length: 28-33 ft / 8-10 m
Weight: 7 lbs / 3 kg
HOLDING POWER
32° (Hard Sand): 3,225 lbs / 1,463 kg
32° (Soft Mud): 645 lbs / 293 kg
PRODUCT NUMBER: FO-2767
Use three-strand nylon rope, 6-12 ft (2-4 m) of chain and a minimum of 5:1 scope. Also, a minimum of 6 ft (2 m) of chain should be used for every 25 ft (8 m) of water depth. For storm conditions use an anchor one or two sizes larger.
SPECIFICATIONS:
Shank: 29 in (74 cm)
Fluke: 17 in (43 cm)
Stock: 23 in (58 cm)
Proof Coil Chain: 1/4 in (6 mm)
Nylon Rope: 3/8 in (10 mm)
Shackle Size: 1/4 in (6 mm)
Boat Length: 28-33 ft / 8-10 m
Weight: 7 lbs / 3 kg
HOLDING POWER
32° (Hard Sand): 3,225 lbs / 1,463 kg
32° (Soft Mud): 645 lbs / 293 kg
PRODUCT NUMBER: FO-2767
