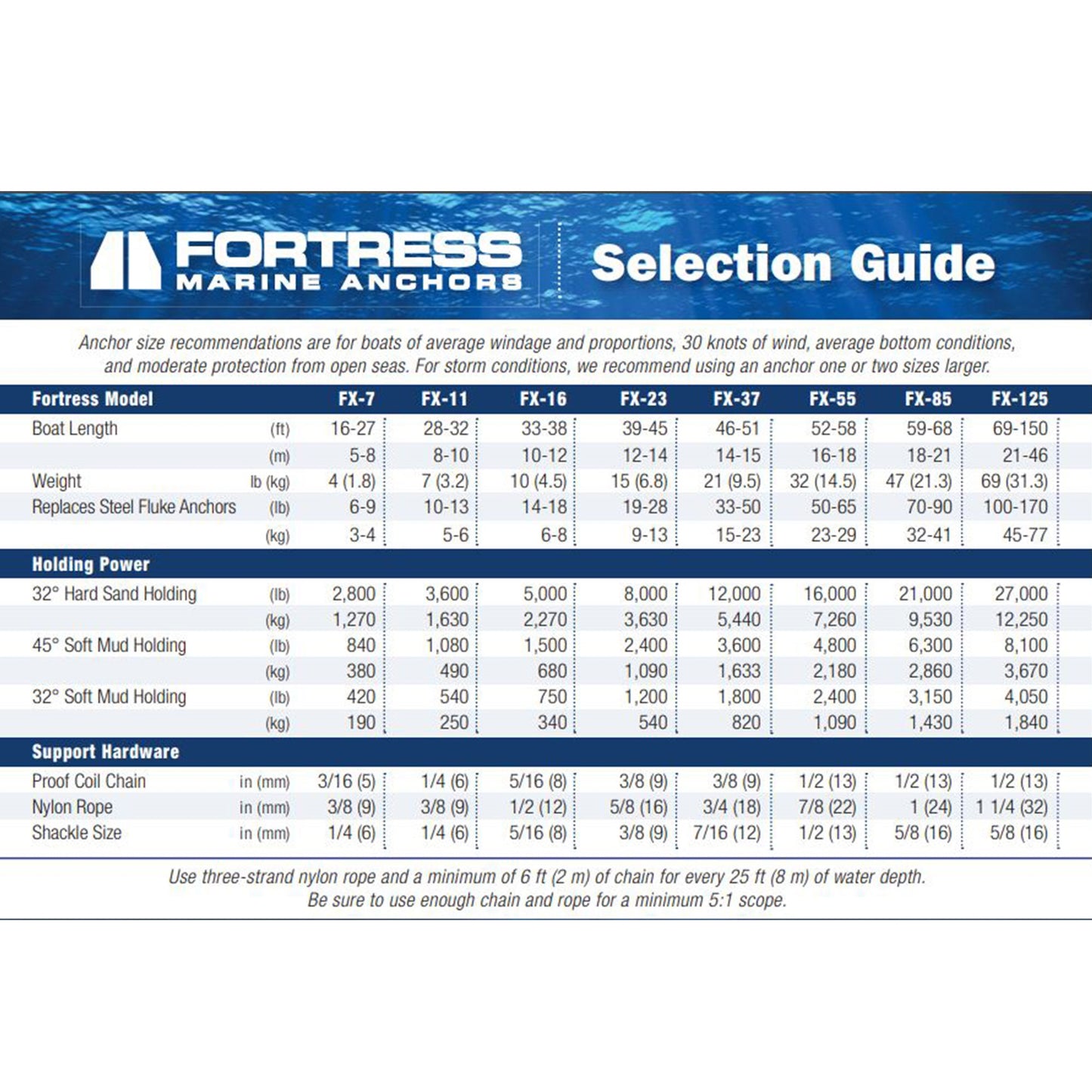

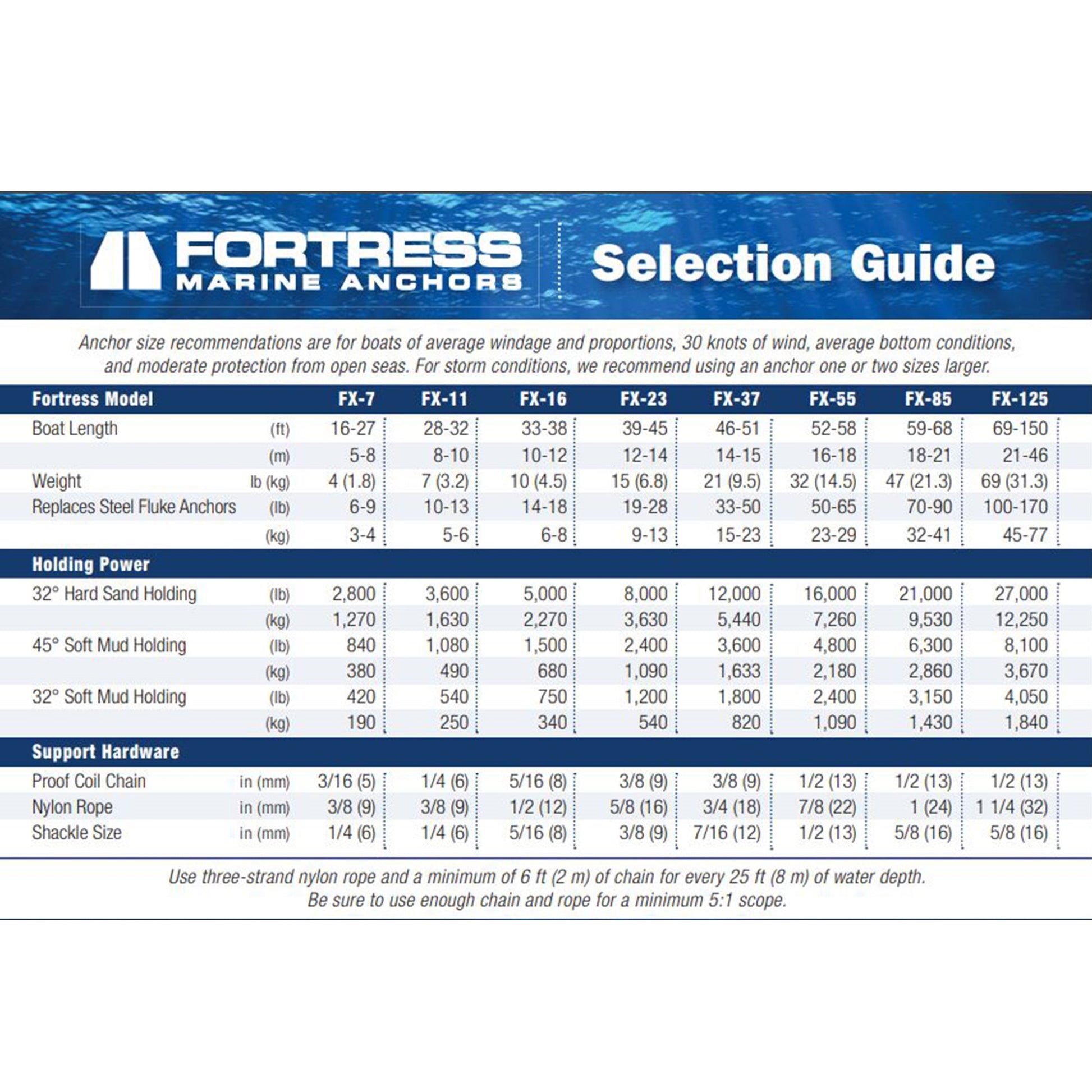

Boat anchor size recommendations are for boats of average windage and proportions in 30 knots of wind, average bottom conditions, and moderate protection from open seas. Remember that the loads in 42 knots of wind are twice as much as in 30 knots.
Use three-strand nylon rope, 6-12 ft (2-4 m) of chain and a minimum of 5:1 scope. Also, a minimum of 6 ft (2 m) of chain should be used for every 25 ft (8 m) of water depth. For storm conditions use an anchor one or two sizes larger.

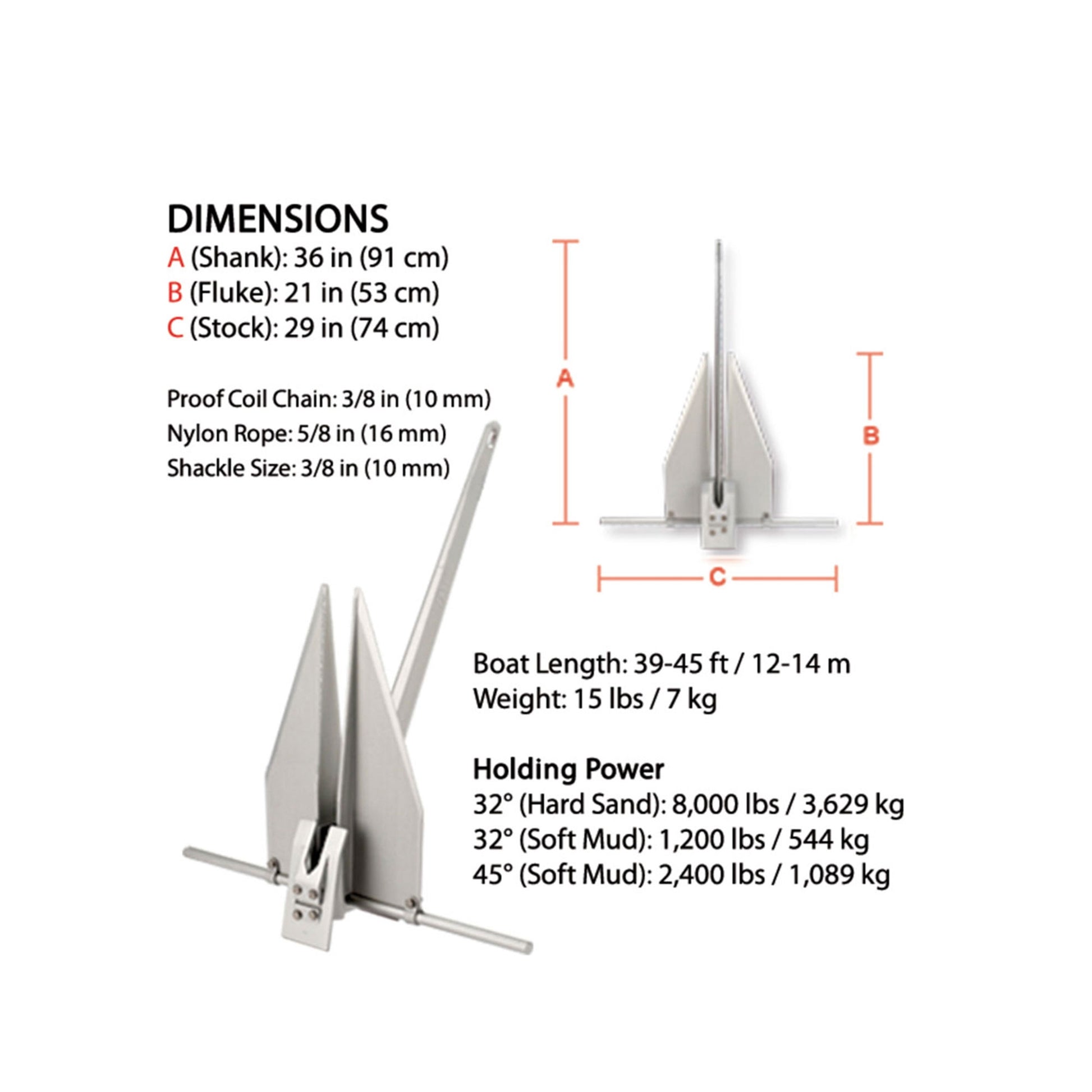

SPECIFICATIONS:
Shank: 36 in (91 cm) Fluke: 21 in (53 cm) Stock: 29 in (74 cm) Proof Coil Chain: 3/8 in (10 mm) Nylon Rope: 5/8 in (16 mm) Shackle Size: 3/8 in (10 mm)
Boat Length: 39-45 ft / 12-14 m Weight: 15 lbs / 7 kg
HOLDING POWER 32° (Hard Sand): 8,000 lbs / 3,629 kg 32° (Soft Mud): 1,200 lbs / 544 kg 45° (Soft Mud): 2,400 lbs / 1,089 kg
