TMC Electric Marine Toilet Large Bowl, 12V

This TMC electric marine toilet comes with a compact white vitreous china bowl that's furnished with a standard household type seat and lid. With the simple push of a button, the self-priming flush pump rinses the bowl as the macerator and high capacity scavenger pump grinds up waste and pumps it out. Includes a heavy-duty pushbutton, 3/4" to 1" inlet and 1" to 1 1/2" discharge hose adapter. Easy-to-clean china bowl. To keep the best priming condition, TMC would suggest it’s better to keep water source close, and the water pump inlet should not be more than 25" above water level.

SPECIFICATIONS:

Voltage: 12 Volts DC
Amperage: 16 Amps at 12 Volts DC
Fuse Size: 30 Amps at 12 Volts DC
Diameter: 3/4" Inlet | 1" Discharge
Weight: 35 lbs (16 kg)
Material: Vitreous China Bowl
Size: Low Profile
Color: White
Dimensions: 15 1/8" (484 mm) x 14 27/32" (376 mm) x 14 3/8" (365 mm)
Designed to use with fresh and seawater

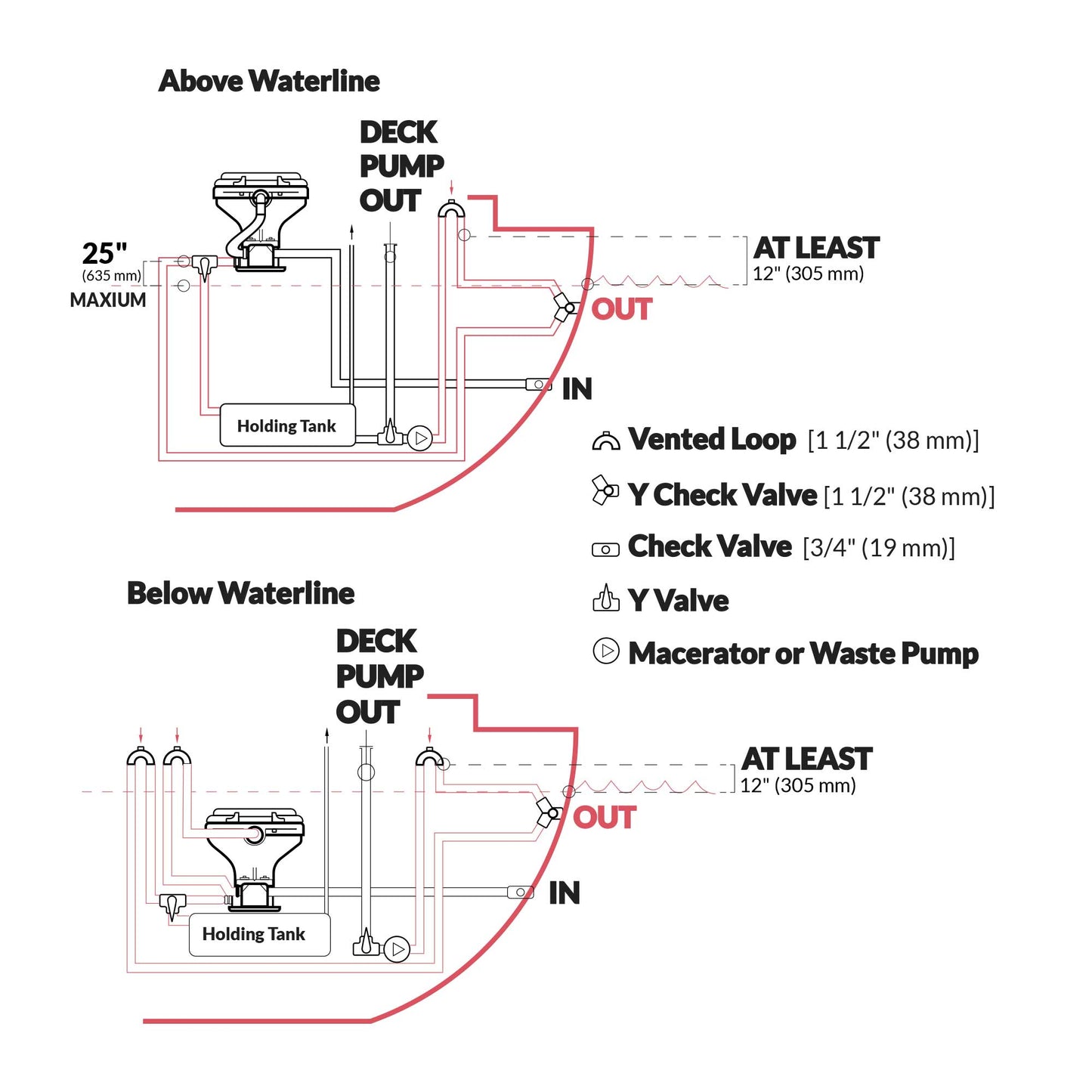

Note: This particular toilet can be installed above or below sea level in any boat. In addition, an external macerator pump is not needed.
Standard installation is not allowed with pressurized water installations. In this case, you need to install a solenoid valve. (We do not sell it)

Recommended Accessories: (not included)

FO-4124 Waste Tank Y-Valve 1" Hose
FO-2420 Inlet Vented Loop for Marine Toilet, 3/4"
FO-2421 Outlet Vented Loop for Marine Toilet, 1"
FO-377 Stainless Steel Round Head Thru-hull with stud for hose, 3/4" AISI316
FO-378 Stainless Steel Round Head Thru-hull with stud for hose, 1" AISI316
FO-1863 White Nylon Thru-Hulls with stud for hose, 3/4"
FO-2558 White Nylon/Stainless Steel Thru-Hulls with stud for hose, 3/4"
FO-2556 White Nylon/Stainless Steel Thru-Hulls with stud for hose, 1"
FO-2995 Black Nylon/Stainless Steel Thru-Hulls with stud for hose, 3/4"
FO-2996 Black Nylon/Stainless Steel Thru-Hulls with stud for hose, 1"

PRODUCT NUMBER: FO-1560
