Bennett Complete Kit BOLT Electric Trim Tab (BOLT129) w/ Indication Control (BCI8000), 12" x 9"

These electric trim tab systems are not only suitable for trailered boats from 18 to 23 feet but come with an electric rocker switch control. Not to mention, the bolt electric features a robust and water-tight black nylon actuator and the wires are concealed and protected through the upper hinge, which leaves no exposed wires. In addition, the main seal is located high to protect against marine growth and water intrusion failures and it's quieter than any other system on the market. Meaning "No more scaring the fish away".

Kit Includes:

(2) Stainless steel trim planes (tabs) and mounting plates (12" x 9")

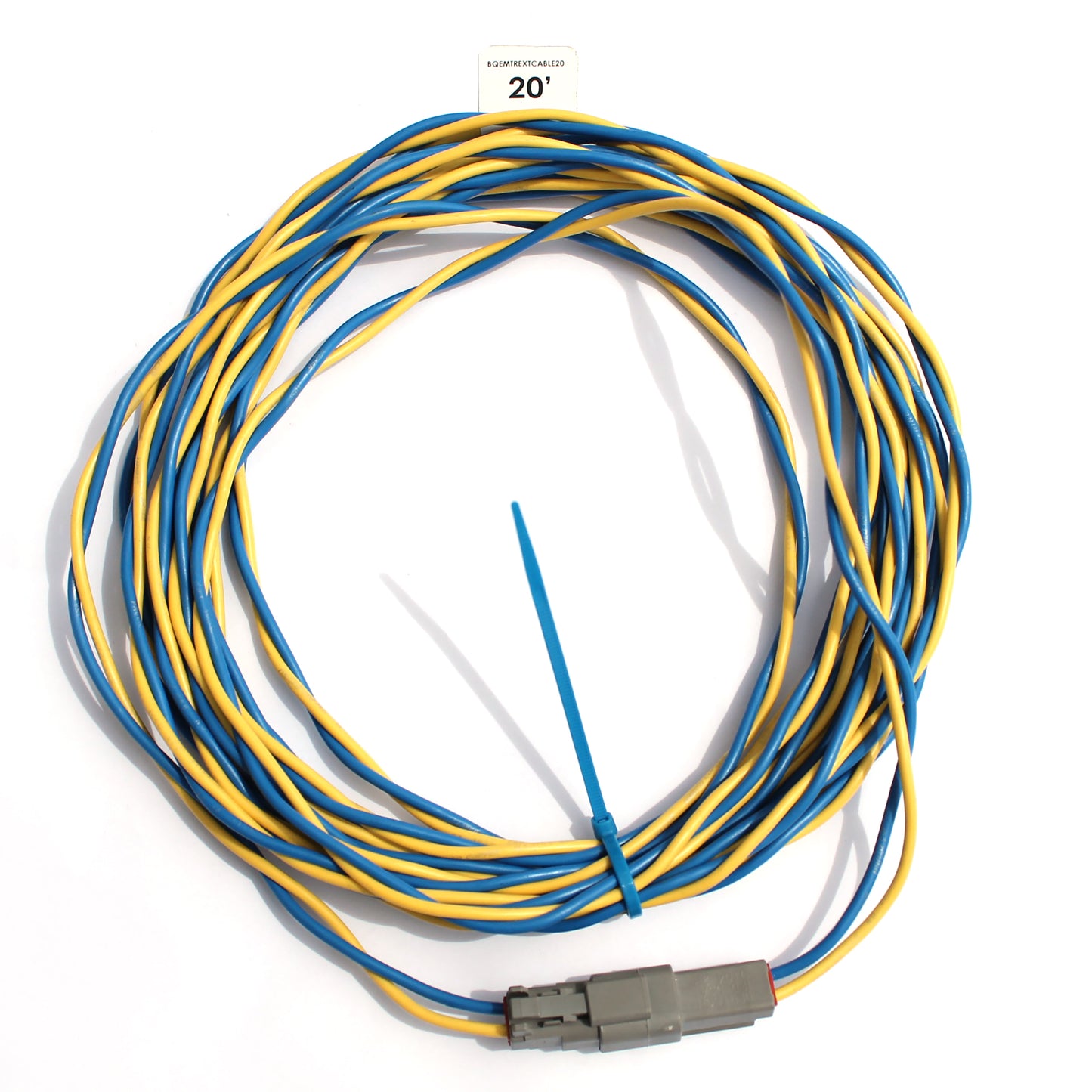

(2) 20ft. harnesses with waterproof connectors (BAW2020)
(2) 12-volt actuators with 6ft. wire harnesses and waterproof connectors (BEA2000 OR BEA3000)
(1) Indication Control (BCI8000)

SPECIFICATIONS:

Compatibility: Boats 18 to 23 Feet Long
Dimensions: 12" Length x 9" Width
Voltage: 12 Volts
Amperage: 10 Amps
Trim Tab Actuator: Electric System
Trim Tab Control Type: Various available
Working forces: Actuation force: 750Lb. | Return Force: 750Lb.
(This is max capacity; typically operates at 250 lbs)
Current draw: 10 – 30 Amp – 30 Amp max – will usually never get to this
Type: Trim Tab Kits
Style: Self-Leveling
Mounting Hardware: Mounting Hardware (Included)
Warranty Details: Limited Lifetime

PRODUCT NUMBER: FO-4322
