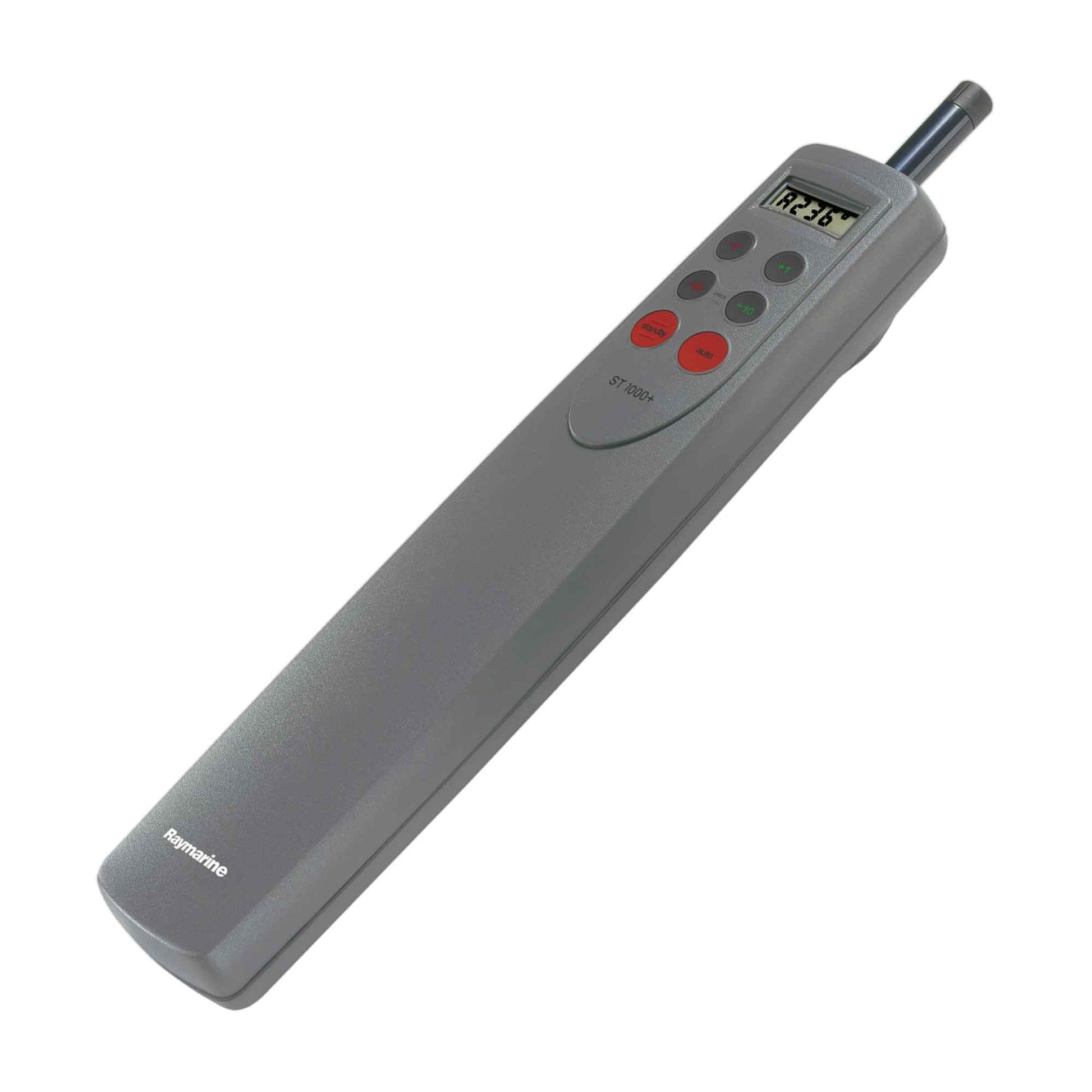

Raymarine Autohelm Series ST2000 Plus Tiller Autopilot (A12005) FO-1049

Classic tiller pilot with powerful drive unit, improved waterproofing and advanced programming
Designed for tiller-steered sailboats to 10,000lb, the ST2000 Plus can accept NMEA data directly for super accurate navigation to a waypoint.
They're the only tiller auto pilots with LCD displays as standard equipment. And their simple six button keypad like all Autohelm series pilots can be customized for optimal steering of a wide range of boats.
Increased waterproofing starts with a double shaft seal made from silicone rubber, which keeps water at bay. Intelligent software minimizes battery draw by reducing unnecessary corrections.

SPECIFICATIONS:

Includes Tiller pin, mounting socket, and deck mounted power plug.
Model: Raymarine ST2000 Tiller Pillots
Part Number: A12005
Recommended Maximum Displacement: 10000lbs (4500kg)
Power Supply: 12V systems
Absolute Voltage Range: 10 - 16V DC
Power Consumption: 40mA
Weight: 1.53 (3.4)
Mounting methods: Reversible port or starboard
Display size: 45mm segmented LCD
Display Lighting: 3 levels plus off
Connections: NMEA 0183 input | SeaTalk
Thrust: 169 lbs (77kg)
Stroke: 236mm (9.3in)

PRODUCT NUMBER: FO-1049
